Realkey belt conveyor (RKCONV-BC) primarily consists of conveyor belt, drive unit, conveyor body structure and control system. It is a type of conveying equipment that relies on a drive roller to move the belt to transport materials continuously. Due to its no relative movement between the transported materials and the belt, belt conveyors offer stable transportation, high efficiency, low noise, and minimal energy loss. They are suitable for transporting various shaped items such as cartons, bags, turnover boxes, and plates. In practical applications, RKCONV belt conveyors come in the following forms:
Flat Belt Conveyors
As the most frequently used type, flat belt conveyors can safely and efficiently transport items to their target locations. Their use is highly flexible, with customizable length and conveying speed according to specific requirements.

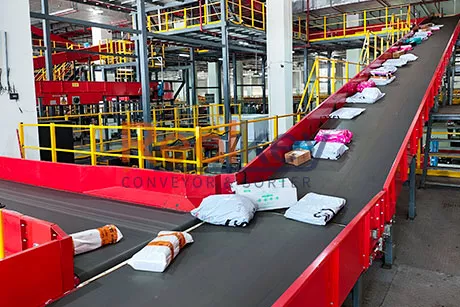

Inclined Belt Conveyors
Inclined belt conveyors are used in scenarios where the conveying path has a height difference. The conveying distance and inclination angle can be customized based on actual requirements.

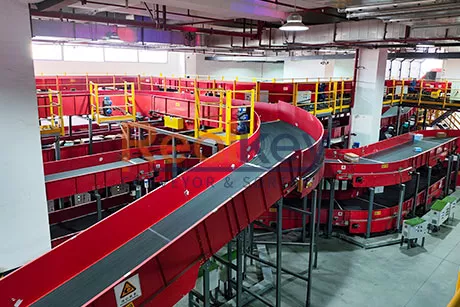

Curved Belt Conveyors
Curved belt conveyors transport items at specific angles. The turning angles can be 30°, 45°, 60°, 90°, or 180°, among other specifications. The turning radius can be designed according to the specific plan, and combined with other conveyor lines to form a more complex conveying system.
Merging Conveyors
Merging conveyors can introduce items into the target conveyor line from different angles. Common merging angles are 45° or 60°. Combined with other conveyor lines, they can form a more complex conveying system.
For more detailed information about the Realkey Belt Conveyor (RKCONV-BC), please refer to the product description below or contact Realkey customer service directly.
Stable Conveying
Depending on the characteristics of the materials and the conveying environment, high-quality materials such as PVC, PVK, and PU are used for the conveyor belt, ensuring low friction, low noise, and stability during the conveying process.
Strong Load Capacity
Designed for various application scenarios, it can carry a wide range of loads, from light small items to heavy goods, and supports both low-speed operation and high-speed frequent start-stop operations.
Flexible Structure
The system is composed of multiple standardized modules, making it easy to install, disassemble, and maintain. It can also be easily expanded according to production needs. The design can include straight lines, curves, inclines, declines, and merging layouts to adapt to complex production line requirements.
Intelligent Control
Integrated with an intelligent control system, it supports speed adjustment, fault warning, automatic start-stop, sleep mode switching, and remote monitoring, enhancing the level of automated management.
Easy Cleaning and Maintenance
The seamless or easily detachable belt design facilitates daily cleaning and hygiene management, making it suitable for industries with strict cleanliness, temperature, and humidity requirements such as food and pharmaceuticals.
Model
RKCONV-BC-204/206/209/211
Length
1.2~20 (m)
Effective Width
400/600/800/1000/1200/1400 (mm)
Belt Material
PVC/PVK/PU/Composite Belt
Conveying Types
Flat/Inclined/Curved/Merging
Drive Types
Gear Motor/Electric Drum, Center Drive/End Drive
Operating Speed
0.2~2.3 (m/s)
Maximum Load
80 (kg/㎡)
Ambient Temperature
-20~40 (℃)
Ambient Voltage
Configurable with side guards, bottom sealing net, photoelectric switch, foot switch, and other accessories as needed.
OEM/ODM
Custom design and manufacturing based on customer requirements.
Postal and Courier Services
High-speed sorting and conveying of mails and parcels.
Logistics and Warehousing
Transporting, sorting, and handling goods within warehouses.
Manufacturing
Conveying raw materials and semi-finished products on production lines, enhancing automation levels.
Food Processing
Suitable for the food processing industry to transport raw materials, semi-finished, and finished products, meeting hygiene and safety standards.
Packaging Industry
Conveying materials on packaging lines to ensure continuity and stability in the packaging process.
Airport Logistics
Core component of automatic baggage conveying and sorting systems.
Wide Adaptability
RKCONV offers a variety of belt conveyor models suitable for conveying items of different shapes, sizes, and weights.
Advanced Technology
Utilizing the latest transmission and control technologies, RKCONV ensures efficient and stable operation even in environments requiring frequent high-speed starts and stops, low temperatures, or high humidity.
Easy Maintenance
Key components such as belts and rollers are made from high-load, wear-resistant materials with self-lubricating properties, reducing the need for maintenance.
Operational Safety
The system is designed with operator safety in mind, equipped with emergency stop mechanisms, protective covers, and other safety devices.
Custom Solutions
Tailored belt conveyor system design and manufacturing services are provided to meet specific customer requirements.
Eco-Friendly and Energy Efficient
The system design emphasizes environmental protection and energy efficiency, using low-noise, low-energy consumption components to minimize environmental impact.
High Reliability
With 17 years of experience in the logistics and conveyor industry, RKCONV is known for its durable and reliable products. Realkey is a trusted partner for logistics conveying and sorting solutions.
