The Swivel Wheel Sorting Machine, also known as the Divert Wheel Sorter or Rotating Wheel Sorter, offers a reliable solution for the sorting of parcels and cartons in conveyor systems.
Comprising of an electric drum (wheel), a steering device, a control system, and a frame, the Swivel Wheel Sorting Machine facilitates the transportation of items through the rotation of the electric drum. The direction and angle of the electric drum are altered using servo motors and steering modules to divert the items left or right.
Capable of handling various packaging materials such as cartons weighing less than 50kg, waterproof bags, woven bags, and irregularly shaped but relatively flat-bottomed non-standard packaging items, the Swivel Wheel Sorting Machine achieves high-speed sorting at a velocity of 2m/s, processing up to 6000 items per hour. This product finds wide applications in postal services, express delivery, e-commerce logistics, and distribution centers.
For further details regarding the Swivel Wheel Sorting Machine, please refer to the product description below or directly consult with our customer service representatives at RKSORT.
Versatility
The swing wheel sorter consists of a relatively flat surface made up of several small electric rollers. The rollers are coated with rubber, providing a large area of flexible contact with the bottom of items, ensuring a smooth and efficient sorting process. This makes it particularly suitable for conveying and sorting various parcels, clothing, books, boxes, cartons, and some soft packages.
Efficient Sorting
The swing wheel sorter utilizes electric rollers as its primary conveying medium. These rollers offer advantages such as high load capacity, low noise, fast speed, and smooth transmission. Compared to traditional structures, the swing wheel sorter eliminates complex transmission mechanisms, resulting in a more efficient operation with sorting efficiency reaching up to 6000 pieces per hour.
Compact Structure
The swing wheel sorter is characterized by its simple design, stable structure, and low failure rate. The steering mechanisms are connected through articulated bearings, allowing for fine adjustments to the steering angle based on actual usage. Steering power is provided by servo motors, ensuring rapid response and smooth sorting. Each swing wheel machine includes multiple sets of steering modules, each independently controlled, requiring only sorting signals to perform sorting actions.
Quick Installation and Removal
Both the single-group swing wheel and single-row module of the swing wheel sorter adopt standardized, modular design. The conveying units are independent modules that can be easily dismantled and separated from the transmission components, facilitating convenient and fast disassembly and maintenance.
Model
SWS-10M Model
SWS-12H
Sorted Items
Medium to large parcels, woven bags, flexible packages, etc
Medium to large parcels, woven bags, flexible packages, etc
Weight Range
0.2kg ≤ M ≤ 50kg
0.2kg ≤ M ≤ 50kg
Sorting Capacity
4000 pieces per hour
6000 pieces per hour
Parcel Size Range (Example for a 1-meter wide device)
MAX: 1000*1000*700mm
MIN: 150*150*30mm
Sorting Success Rate
99.99%
99.99%
Sorting Modes
Single-sided sorting
Double-sided sorting
Electric Drum Size
Drum length 85mm
Drum diameter 70mm
Conveying Speed
1-1.5m/s
1.2-2m/s
Number of Swing Mechanisms
Not less than 2 Not less than 5
Not less than 2 Not less than 5
Parcel Spacing
800mm
400mm
Operating Noise
≤72dB (A)
≤72dB (A)
The swing wheel sorter provides a smooth and efficient sorting process, making it particularly suitable for conveying and sorting various types of parcels, clothing, books, boxes, cartons, and some soft packages.

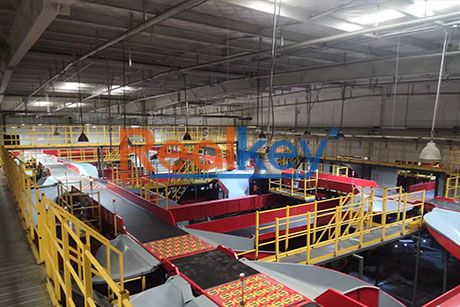

The swing wheel sorter is widely used in various logistics scenarios, including express delivery, logistics centers, warehouses, and more. In these scenarios, the swing wheel sorter can quickly and accurately complete the sorting of express parcels, goods, and other items.
In e-commerce warehouses, the swing wheel sorter can help companies process a large number of orders and parcels quickly and efficiently. Consequently, the swing wheel sorter has gained widespread application in e-commerce logistics.
On manufacturing production lines, the swing wheel sorter can assist companies in efficiently handling raw materials, components, and other materials, categorizing and storing them accordingly. The swing wheel sorter has found extensive application in fields such as healthcare, food, and new energy.
Advanced Technology
The RKSORT swing wheel sorter's control system, in conjunction with sensors, efficiently controls the start and stop of the equipment based on the arrival of packages, ensuring high efficiency and energy savings. Servo-driven sorting ensures fast response times and precise controllability of turning angles. Various sorting modes, including uni-directional, bi-directional, and multi-angle sorting, can be achieved according to specific application scenarios, meeting diverse user requirements.
Precision Manufacturing
Components are crafted through CNC precision machining, meticulously assembled and fine-tuned, resulting in equipment with high precision, long lifespan, low noise, and low maintenance costs.
Safety and Stability
The RKSORT swing wheel sorter is robust and durable, boasting high reliability and stability reaching advanced domestic standards. Thoughtful protection measures are implemented across all operational components, while careful safety designs alleviate operator concerns.
Reliability
With 17 years of experience in logistics conveyance and automatic sorting, RKSORT has a unique advantage in helping customers devise sorting solutions. Renowned for solid durability, our products establish us as a trustworthy partner you can rely on.
