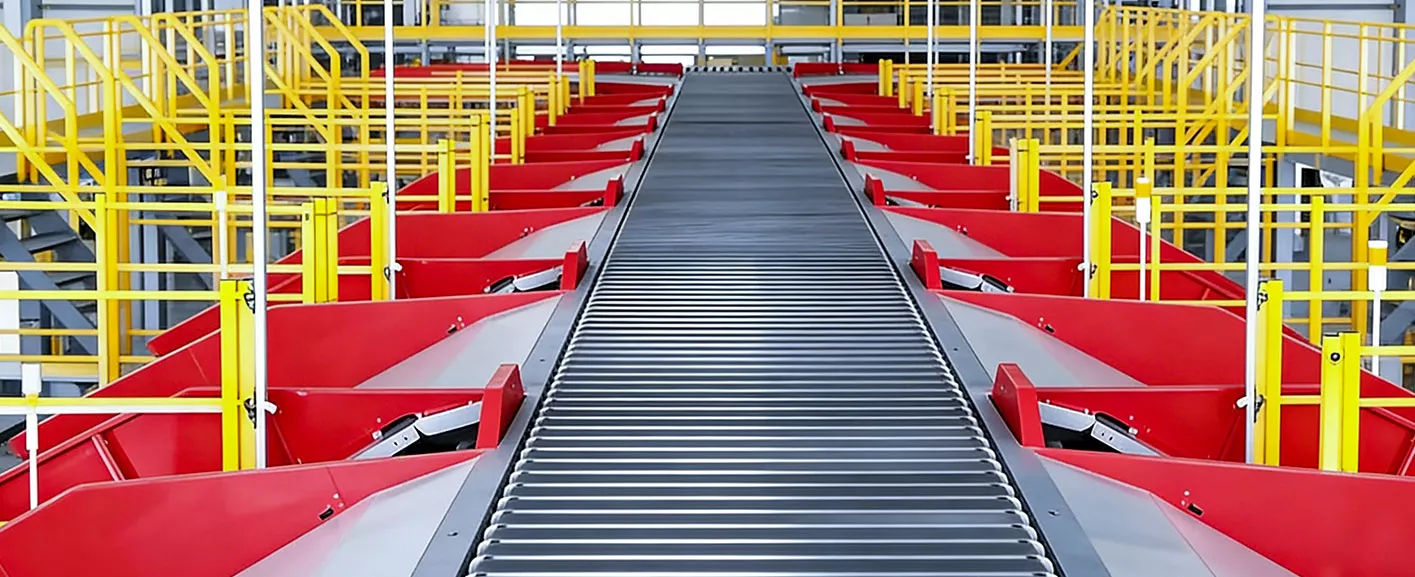

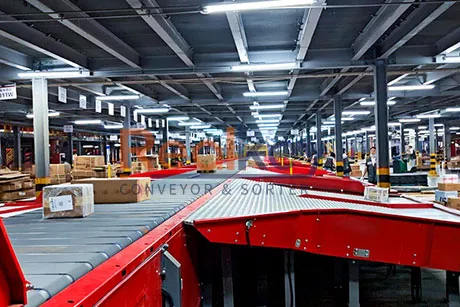

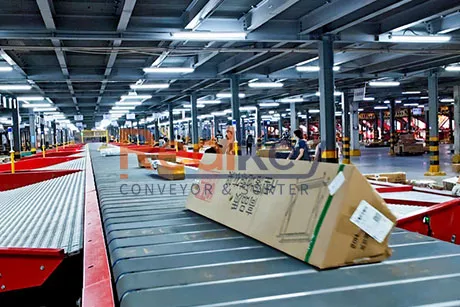

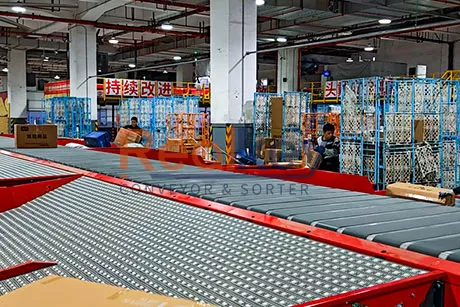

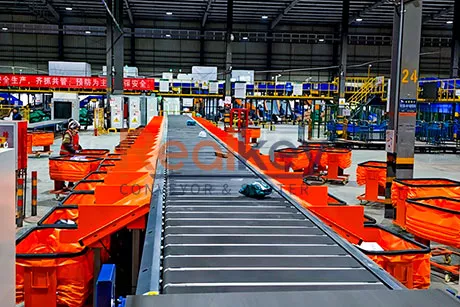

Narrow Belt Sorter (RKSORT-NBS) provides an efficient and reliable solution for sorting items of various sizes, such as parcels and cartons, especially for packages with lower impact requirements, such as fresh produce. The narrow belt sorter offers unique advantages in this regard.
The narrow belt sorter primarily consists of narrow belt carts, drive systems, machine frames, recognition systems, and communication systems. Multiple narrow belt carts are connected sequentially to form a long sorting line. The mainline conveying speed of the narrow belt sorter can reach up to 2.5 meters per second, with a sorting efficiency of up to 8000 items per hour. Narrow belt sorters are widely used in various operational scenarios such as postal and express delivery, e-commerce logistics, and supermarket distribution centers.
For more detailed information about the narrow belt sorter, please refer to the product description below or directly consult RKSORT customer service personnel.
Strong Applicability
The narrow belt sorter adopts a linear layout, occupying a small footprint and exhibiting strong applicability. With the conveyor medium being narrow belt conveyors (with a width of only 174mm) and minimal gaps between adjacent belts (less than 30mm), the narrow belt sorter can simultaneously sort almost all common parcel sizes. It particularly excels in sorting foam boxes, fragile items, and oversized items (with lengths reaching up to 2 meters). There are few, if any, other devices that can match its capabilities for sorting oversized or overweight items.
Efficient Sorting
Sorted items do not require manual spacing, allowing for a compact arrangement. The narrow belt sorter automatically matches one or more narrow belt carts' movements based on the size of the items to be sorted, facilitating simultaneous sorting of items of varying sizes. With minimal inter-item spacing required, sorting efficiency can reach up to 8000 items per hour.
Advanced Technology
The mainline of the narrow belt sorter is driven by linear motors, while carts are driven by electric drum motors, with power supplied via sliding contacts and communication facilitated via infrared wireless. During sorting, instructions are sent from the infrared transceiver controller at the corresponding chute to the electric drum motor driver on the cart, which then controls the cart belt to perform the sorting action.
Customized Solutions
RKSORT narrow belt sorters can provide customized solutions for users. Utilizing modular design and assembly, even already operational equipment can be easily modified according to changing user requirements, such as by adding guides and carts to increase sorting chutes. Depending on specific needs, automatic and manual feeding can be implemented, with options for single-sided or multi-sided scanning. Highly customized services cater more closely to users' actual needs, eliminating concerns for users during use.
Durable and Easy to Maintain
RKSORT linear narrow belt sorters feature independently designed electric drum units, allowing for modular assembly where each individual module can be separately disassembled and repaired. This design facilitates ease of operation and maintenance, significantly reducing subsequent maintenance costs for users.
Model
RKSORT-NBC-203E
Sorted Items
Various parcels, cartons, foam boxes, woven bags, flexible packages, etc
Weight Range
0.3kg ≤ M ≤ 60kg
Sorting Capacity
8000 pieces per hour
Parcel Size Range
MAX: 1200*1000*1000mm
MIN: 150*150*15mm
Effective Equipment Width
1000mm
Sorting Success Rate
99.99%
Cart Pitch
203mm
Feeding Method
Automatic loading at the head end
Conveying Speed
1.5-2.5m/s
Minimum Height of Sorter
850mm
Operating Noise
≤78dB (A)

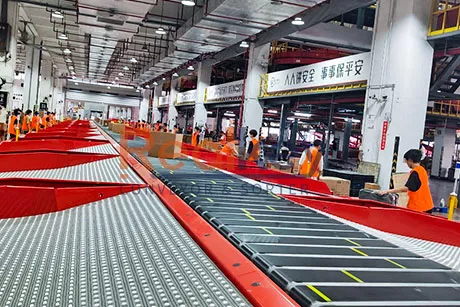

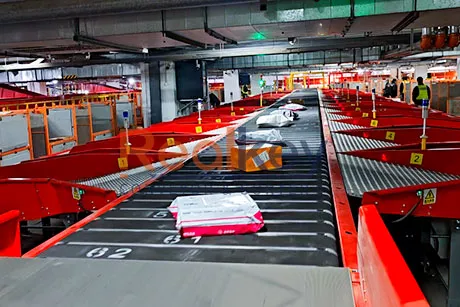

Postal and Express Delivery
The postal and express delivery industry deals with a wide variety of parcels in terms of types, sizes, and shapes, which are complex and diverse. Narrow belt sorters can accurately recognize and adapt to these differences, efficiently and precisely sorting express parcels to different destinations.
E-commerce Picking
With the thriving development of global e-commerce, logistics efficiency has become one of the core competitiveness factors for e-commerce businesses. Faced with different packaging and size specifications of products, narrow belt sorters can assist businesses in quickly and accurately picking items, thus improving logistics efficiency, reducing delivery time, and lowering labor costs.
Fresh Produce Delivery
Narrow belt sorters can be installed at a height of only 850mm above the ground, with gentle sorting actions. Coupled with rollers and modules with sliding grooves, they can effectively handle logistics parcels for fresh produce, fruits, vegetables, and alcoholic beverages, which can only withstand low impacts.
Specific Manufacturing Industries
In certain manufacturing sectors, such as automotive parts production lines, narrow belt sorters, when combined with visual recognition technology, can automatically sort different parts to corresponding process positions based on their size, shape, and other characteristics. This significantly enhances production efficiency.
Advanced Design
RKSORT's narrow belt sorter eliminates the traditional chain-driven mechanism and adopts a more advanced design with linear motor drive and articulated bearing connections. This design results in a more compact overall structure, significantly reducing equipment failures caused by chain elongation and deformation. It also completely eliminates the problem of oil contamination on-site due to chain lubrication.
Precision Manufacturing
Components are crafted through CNC precision machining, meticulously assembled and fine-tuned. The combination of superb craftsmanship and stringent quality control ensures high precision, long lifespan, low noise, and low maintenance costs for the equipment.
Safety and Stability
RKSORT's narrow belt sorter is robust and durable, boasting high reliability and stability reaching advanced domestic standards. Thoughtful protection measures are implemented across all operational components, while careful safety designs alleviate operator concerns.
Reliability
With 17 years of experience in logistics conveyance and automatic sorting, RKSORT has a unique advantage in helping customers devise sorting solutions. Renowned for their solid durability, our products establish us as a trusted partner you can rely on.
